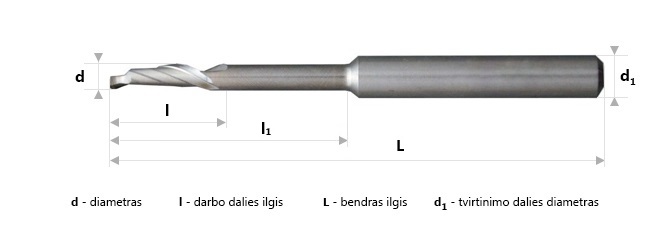

Vienplunksnės frezos, II tipas
Diametras, mm
|
I, mm
|
I1, mm
|
L, mm
|
d1, mm
|
4,0
|
16
|
45
|
90
|
8,0
|
5,0
|
14
|
45
|
80
|
6,0
|
5,0
|
18
|
35
|
80
|
6,0
|
5,0
|
18
|
35
|
80
|
8,0
|
5,0
|
16
|
45
|
80
|
8,0
|
5,0
|
16
|
45
|
90
|
8,0
|
5,0
|
18
|
35
|
100
|
8,0
|
5,0
|
25
|
55
|
100
|
8,0
|
5,0
|
14
|
75
|
120
|
8,0
|
5,0
|
14
|
35
|
120
|
8,0
|
5,0
|
18
|
35
|
120
|
8,0
|
5,0
|
14
|
35
|
80
|
8,0
|
6,0
|
14
|
35
|
80
|
8,0
|
6,0
|
14
|
45
|
80
|
8,0
|
6,0
|
14
|
45
|
80
|
8,0
|
6,0
|
16
|
45
|
90
|
8,0
|
8,0
|
14
|
54
|
80
|
8,0
|
8,0
|
14
|
68
|
100
|
8,0
|
8,0
|
14
|
90
|
120
|
8,0
|
10,0
|
14
|
65
|
85
|
10,0
|
10,0
|
25
|
45
|
90
|
10,0
|
10,0
|
14
|
75
|
96
|
10,0
|
10,0
|
14
|
95
|
120
|
10,0
|
